CD Profile – 3 m (0.55 mm)

Application:
The CD 60/27 profile (length 3 m, thickness 0.55 mm) is used for building frameworks for suspended ceilings and drywall wall cladding. It works in conjunction with the UD27 guide profile and is mounted using straight or swivel hangers.

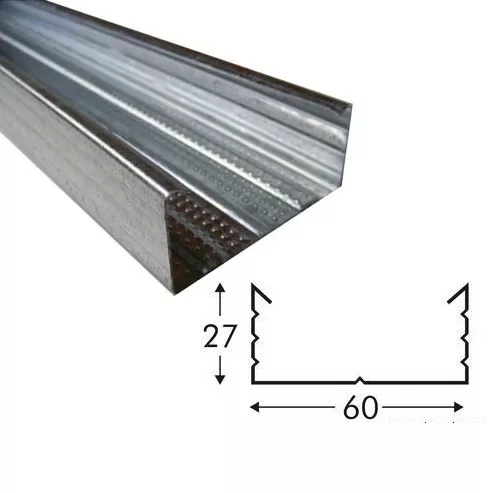

This C-shaped profile features three longitudinal ribs on both flanges and the web, providing additional rigidity. The inward-folded flange edges allow for secure suspension on clip hangers.

Work execution:
Hangers are attached to the profile using 3.5×9.5 mm screws. The 60 mm wide web offers a reliable base for drywall installation. With the use of special connectors, installation is fast and easy.

Advantages:

• Affordable cost

• Corrosion resistance

• Lightweight and easy to install

• Versatile application

• Durable and long-lasting

• Eco-friendly and fire-resistant

• Easy to transport

Specifications:

• Type: CD 60/27

• Length: 3 m

• Metal thickness: 0.55 mm

• Width: 60 mm

• Height: 27 mm

• Material: galvanized steel
