UD-Profile — 3 m (0.55 mm)

Application:
The UD ceiling guide profile is used for the installation of single-level suspended ceiling frames and wall cladding structures made of plasterboard.

Installation & Benefits:

• Mounted along the room perimeter for ceilings

• For wall cladding, fixed to both floor and ceiling

• 6 mm holes spaced every ~250 mm for fastener installation

• Easily cut with metal shears

• Connects with CD60 profiles using 3.5×9.5 mm self-drilling screws

• Lightweight, corrosion-resistant, durable, and safe

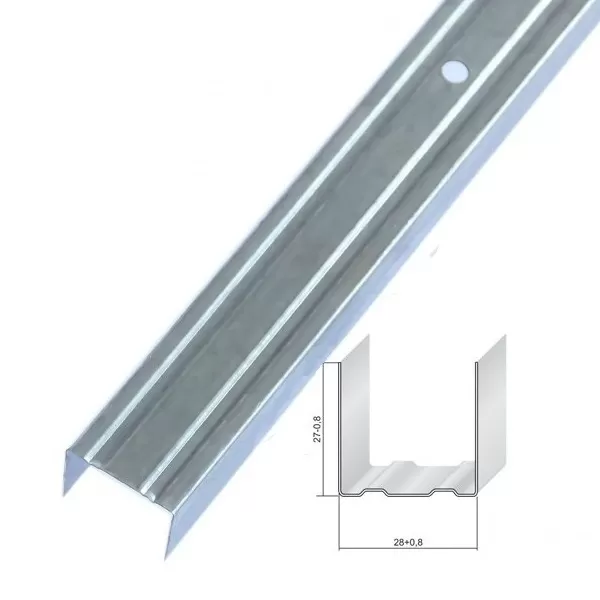

Specifications:

• Metal thickness: 0.55 mm

• Length: 3 m

• Flange width: 27 mm

• Back width: 28 mm
