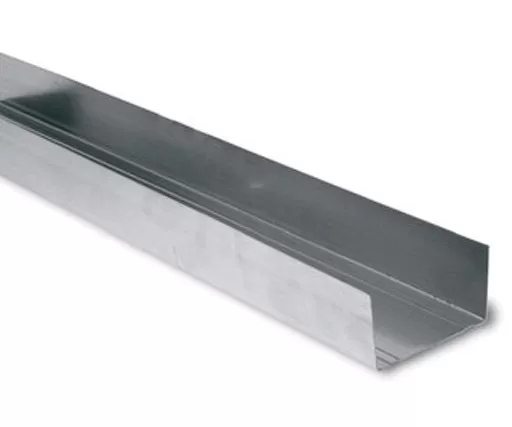

UW-75 Profile — 4 m (0.45 mm)

Application:
UW guide profile is used for constructing frames of interior partition walls, claddings, and other drywall systems. It acts as the guiding base for CW stud profiles of matching size.

Installation and Benefits:

• Serves as top and bottom track for partition framing

• U-shaped design ensures stable installation of studs

• No inward flanges — allows tight fit for CW profiles

• Easily cut with metal shears

• Fastened to floor, ceiling, and walls with suitable dowels

• Connects with self-tapping screws 3.5×9.5/11 mm

Specifications:

• Metal thickness: 0.45 mm

• Length: 4 m

• Width: 75 mm
