CW-75 Profile - 4 m (0.45 mm)

Application:

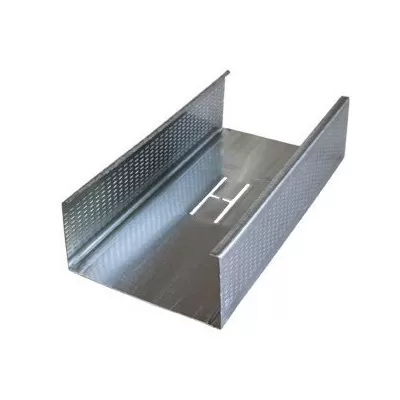

The CW-75 stud profile is a C-shaped metal element used for building vertical frames in plasterboard partition walls and wall cladding systems. It is mounted vertically between matching UW track profiles. H-shaped cutouts allow easy access for routing cables and pipes.

Installation and Features:

• Paired with a matching-size UW profile

• Tight and deformation-free connection

• Three ribs (center + two lateral) for better screw guidance during plasterboard fixing

• Reinforced stiffness due to longitudinal ribs

• Central rib serves as a mounting guide

• 3 pairs of 33 mm holes for electrical and technical installations

• Fixed using a punching tool or 3.5 x 9.5 mm self-tapping screws

• Suitable for both single and double-layer walls with soundproofing needs

Specifications:

• Metal thickness: 0.45 mm

• Length: 4 m

• Width: 75 mm
